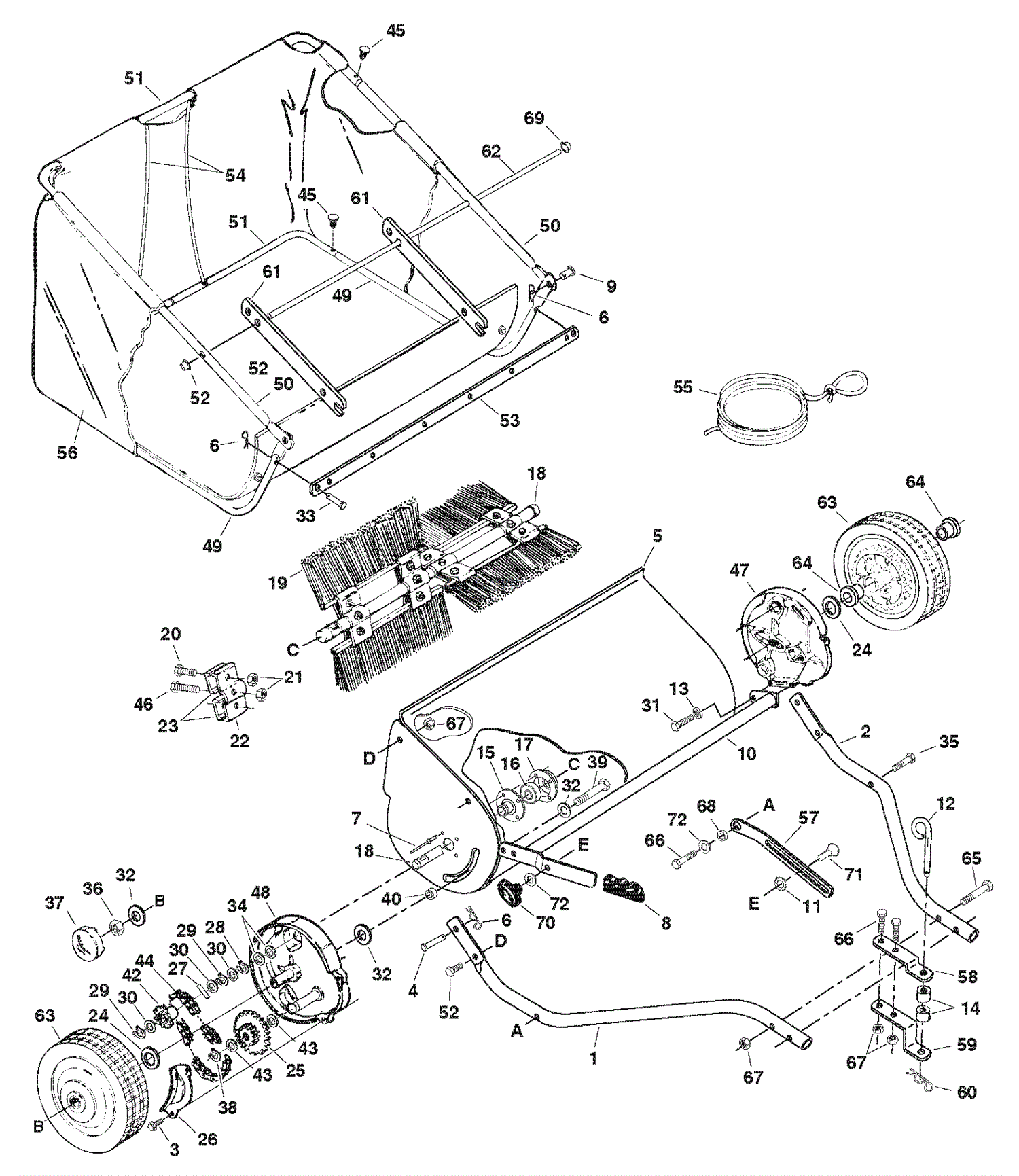

Lawnsweepers > 45-01974 38" High Performance Lawnsweeper > 45-01974 (38") - High Performance Lawnsweepers
+ -
Index
Part
Price
Qty
Index:1
Part:
HITCH TUBE, (RH) (38 HS)
Price:
Qty:
1
Index:2
Part:
HITCH TUBE, (LH) (14 GA)
Price:
Qty:
1
Index:3
Part:
SCREW, #12 X 1/2
Price:$0.60
Qty:
4
Index:4
PIN, CLEVIS .375 X .512
Part:
PIN, CLEVIS .375 X .512
Price:$0.90
Qty:
2
Index:5
Part:
ASS'Y, HOUSING (38" HS)
Price:
Qty:
1
Index:6
PIN, HAIR 3/32 X 1.8
Part:
PIN, HAIR 3/32 X 1.8
Price:$1.33
Qty:
6
Index:7
RIVET, POP 3/16 SD 66 BS ZY
Part:
RIVET, POP 3/16 SD 66 BS ZY
Price:$0.38
Qty:
8
Index:8
GRIP HT. ADJ 32"/38"
Part:
GRIP HT. ADJ 32"/38"
Price:$2.12
Qty:
1
Index:9
PIN, CLEVIS 3/8 X .295
Part:
PIN, CLEVIS 3/8 X .295
Price:$2.04
Qty:
2
Index:10
Part:
OBSOLETE
Price:
Qty:
1
Index:11
WASHER, 3/8 EXTERNAL TOOTH
Part:
WASHER, 3/8 EXTERNAL TOOTH
Price:$0.60
Qty:
1
Index:12
PIN, HITCH 3/8 X 3
Part:
PIN, HITCH 3/8 X 3
Price:$5.09
Qty:
1
Index:13
WASHER, LOC 5/16
Part:
WASHER, LOC 5/16
Price:$0.48
Qty:
4
Index:14
PLEASE ORDER 48130
Part:
PLEASE ORDER 48130
Price:
Qty:
2
Index:15
Part:
ASS'Y, BRUSH BUSHING WELDM
Price:$14.38
Qty:
2
Index:16
BEARING, BALL 15MM ID X 35MM OD X 11MM
Part:
BEARING, BALL 15MM ID X 35MM OD X 11MM
Price:$3.54
Qty:
2
Index:17
RETAINER, BEARING
Part:
RETAINER, BEARING
Price:$2.84
Qty:
2
Index:18
Part:
OBSOLETE
Price:$40.58
Qty:
1
Index:19
Part:
BRUSH, 38" SWEEPER 19-3/4"
Price:$6.65
Qty:
4
Index:20
BOLT, HEX 1/4-20 X 3/4 GR5
Part:
BOLT, HEX 1/4-20 X 3/4 GR5
Price:$0.55
Qty:
8
Index:21
NUT, HEX 1/4-20 NYLOC
Part:
NUT, HEX 1/4-20 NYLOC
Price:$0.60
Qty:
12
Index:22
RETAINER, BRUSH (DOUBLE) BRACKET
Part:
RETAINER, BRUSH (DOUBLE) BRACKET
Price:$2.24
Qty:
4
Index:23
RETAINER, BRUSH (SINGLE) CLIP
Part:
RETAINER, BRUSH (SINGLE) CLIP
Price:$1.16
Qty:
8
Index:24
WASHER, .756 X 1.125 X .025
Part:
WASHER, .756 X 1.125 X .025
Price:$0.55
Qty:
2
Index:25
Part:
ASS'Y, SPROCKET GEAR SUB 38"
Price:$22.32
Qty:
2
Index:26
Part:
OBSOLETE
Price:
Qty:
2
Index:27
PIN, DOWEL 1/4 X 3/4
Part:
PIN, DOWEL 1/4 X 3/4
Price:$0.62
Qty:
2
Index:28
Part:
RING, RETAINING 3/4" (5100-75)
Price:$0.66
Qty:
2
Index:29
RING, RETAINING .594 ID
Part:
RING, RETAINING .594 ID
Price:$0.55
Qty:
4
Index:30
PLEASE ORDER 40001
Part:
PLEASE ORDER 40001
Price:
Qty:
6
Index:31
BOLT, HEX 5/16-18 X 3/4 GR5
Part:
BOLT, HEX 5/16-18 X 3/4 GR5
Price:$0.71
Qty:
4
Index:32
WASHER, .378 X 1.25 X .061
Part:
WASHER, .378 X 1.25 X .061
Price:$0.60
Qty:
6
Index:33
PIN, CLEVIS 1/4 X .945
Part:
PIN, CLEVIS 1/4 X .945
Price:$1.01
Qty:
2
Index:34
WASHER, .78 X 1.25 X .062
Part:
WASHER, .78 X 1.25 X .062
Price:$0.55
Qty:
4
Index:35
BOLT, HEX 5/16-18 X 1-3/4 GR5
Part:
BOLT, HEX 5/16-18 X 1-3/4 GR5
Price:$0.34
Qty:
1
Index:36
NUT, HEX 3/8-24 JAM NYLOC
Part:
NUT, HEX 3/8-24 JAM NYLOC
Price:$0.48
Qty:
2
Index:37
CAP, HUB BLACK
Part:
CAP, HUB BLACK
Price:$3.48
Qty:
2
Index:38
Part:
RING, RETAINING "E" TYPE
Price:$0.48
Qty:
2
Index:39
Part:
BOLT, HEX 3/8-24 X 3-1/2 GR5
Price:$0.99
Qty:
2
Index:40
SPACER, .410ID X .620OD X .150LG
Part:
SPACER, .410ID X .620OD X .150LG
Price:$1.28
Qty:
2
Index:41
Part:
SPROCKET, RATCHET L.H. 10 T.
Price:$6.88
Qty:
1
Index:42
Part:
SPROCKET, RATCHET R.H. 10 T.
Price:$6.88
Qty:
1
Index:43
WASHER, .518 X 1 X .02
Part:
WASHER, .518 X 1 X .02
Price:$0.25
Qty:
4
Index:44
Part:
CHAIN, ROLLER 43 X 34P ENDLESS
Price:$3.64
Qty:
2
Index:45
PLUG, 1/4" (CHRISTMAS TREE)
Part:
PLUG, 1/4" (CHRISTMAS TREE)
Price:$1.32
Qty:
4
Index:46
BOLT, HEX 1/4-20 X 1 GR5
Part:
BOLT, HEX 1/4-20 X 1 GR5
Price:$0.48
Qty:
4
Index:47
Part:
ASS'Y, HOUSING WHEEL DRIVE L H
Price:$39.81
Qty:
1
Index:48
Part:
ASS'Y, HOUSING WHEEL DRIVE R H
Price:$39.81
Qty:
1
Index:49
Part:
TUBE, HOPPER LOWER (FRONT)
Price:$13.09
Qty:
2
Index:50
Part:
TUBE, UPPER HOPPER (FRONT)
Price:$11.45
Qty:
2
Index:51
Part:
TUBE, HOPPER UPPER (REAR)
Price:$13.39
Qty:
2
Index:52
BOLT, HEX 5/16-18 X 1 G5
Part:
BOLT, HEX 5/16-18 X 1 G5
Price:$0.78
Qty:
2
Index:53
Part:
STRAP, BAG FRAME
Price:
Qty:
1
Index:54
ROD, HOPPER SUPT .187 X 34"
Part:
ROD, HOPPER SUPT .187 X 34"
Price:$2.47
Qty:
2
Index:55
ROPE, HOPPER BLK 1/4"X10'(W/CAUTION LBL)
Part:
ROPE, HOPPER BLK 1/4"X10'(W/CAUTION LBL)
Price:$1.51
Qty:
1
Index:56
Part:
BAG, HOPPER 38" HI-BACK
Price:$71.52
Qty:
1
Index:57
STRAP, HT ADJUST
Part:
STRAP, HT ADJUST
Price:$6.72
Qty:
1
Index:58
BRACKET, HITCH
Part:
BRACKET, HITCH
Price:
Qty:
1
Index:59
BRACKET, HITCH
Part:
BRACKET, HITCH
Price:
Qty:
1
Index:60
PIN, HAIR COTTER 3/32 X 2-5/16
Part:
PIN, HAIR COTTER 3/32 X 2-5/16
Price:$1.16
Qty:
1
Index:61
Part:
ARM, BAG (32/38"HS)
Price:
Qty:
2
Index:62
Part:
OBSOLETE
Price:$5.58
Qty:
1
Index:63
PLEASE ORDER 6-93C
Part:
PLEASE ORDER 6-93C
Price:
Qty:
2
Index:64
BEARING, WHEEL (38" 42" 44" 46" SWEEP)
Part:
BEARING, WHEEL (38" 42" 44" 46" SWEEP)
Price:$3.04
Qty:
4
Index:65
BOLT, HEX 5/16-18 X 3 GR5
Part:
BOLT, HEX 5/16-18 X 3 GR5
Price:$0.63
Qty:
2
Index:66
BOLT, HEX 5/16-18 X 2-1/4 GR5
Part:
BOLT, HEX 5/16-18 X 2-1/4 GR5
Price:$1.33
Qty:
3
Index:67
NUT, HEX .312-18 NYLOC
Part:
NUT, HEX .312-18 NYLOC
Price:$0.60
Qty:
8
Index:68
SPACER, .380ID X .620OD X .270LG
Part:
SPACER, .380ID X .620OD X .270LG
Price:$2.32
Qty:
1
Index:69
PALNUT, 3/8"
Part:
PALNUT, 3/8"
Price:$0.71
Qty:
2
Index:70
KNOB, WING 5/16 -18 (X-9966)
Part:
KNOB, WING 5/16 -18 (X-9966)
Price:$2.02
Qty:
1
Index:71
BOLT, CARR 5/16-18 X 1 GR5
Part:
BOLT, CARR 5/16-18 X 1 GR5
Price:$0.60
Qty:
1
Index:72
WASHER, 3/8 X 7/8 X .083
Part:
WASHER, 3/8 X 7/8 X .083
Price:$0.60
Qty:
2
Index:
Part:
OBSOLETE
Price:
Qty:
1
